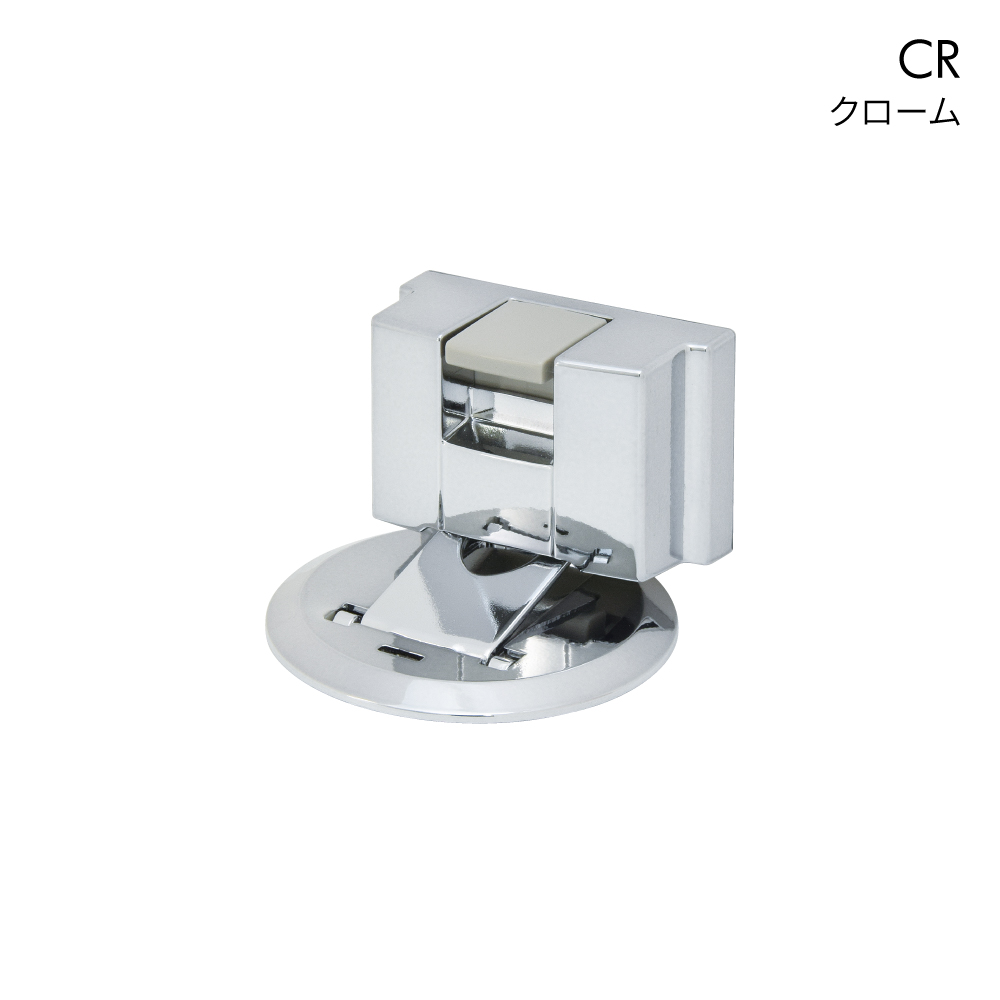

PT-600
DOOR STOPPERS
| Product Code | Note | ||
|---|---|---|---|
| PT-600-SV | DOOR STOPPER SILVER | Thickness of mounting door：30mm～ | |
| PT-600-CR | DOOR STOPPER CHROME | Thickness of mounting door：30mm～ |
| Materials | ABS Resin（ABS）+Steel Sheet+Neodymium Magnet |
|---|---|
| Finish | Silver Chrome |
| Usage examples | Wood Door |
| Operating instructions | Lower the lock lever to lock and raise the lock lever to unlock. |
| Attention | ◇For wood flooring only. Cannot be installed on soft flooring materials such as carpets and cushion floors. ◇Install this product after adjusting the door build. ◇Can be installed when the gap between the door and the floor is between 4 and 15 mm; if the gap is more than 15 mm, the stopper may not work and the door may crash into a wall or other object. ◇Do not use in areas where underfloor heating systems are used. ◇If the door opens and closes too fast, the stopper may not operate. |
| Key No. | Attached part: ：truss tapping screws(2pcs.)、flathead tapping screws(2pcs.)、Mounting jig(1pc.) |
Features
-
・This is a magnet type door stopper. The magnet built into the main body adsorbs the stopper on the receiver and keeps the door open.
・It has a simple lock function.
・The fixture is a flat type that does not protrude from the floor surface.
