OT-B450-SUS

STAINLESS HINGE FOR GLASS

Product Code Note
OT-B450-SUS-MST STAINLESS HINGE FOR GLASS Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges)
OT-B450-SUS-HLST STAINLESS HINGE FOR GLASS Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges)
OT-B450-SUS-MB STAINLESS HINGE FOR GLASS Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges)
OT-B450-SUS-CP STAINLESS HINGE FOR GLASS Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges) ※Make-to-oder.
OT-B450-SUS-GL STAINLESS HINGE FOR GLASS Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges) ※Make-to-oder.
●Rerate Product BASE HARDWARE FOR OT-B450-SUS 25mm(sold separately)
BASE HARDWARE FOR OT-B450-SUS 35mm (sold separately)
Spacer for OT-B450-SUS(sold separately) Materials:Aluminum Size:3mm/1mm
Materials Stainless Steel(SUS-304)
Finish Mirror Polishing(MST)
Hairline Stainless Steel(HLST)

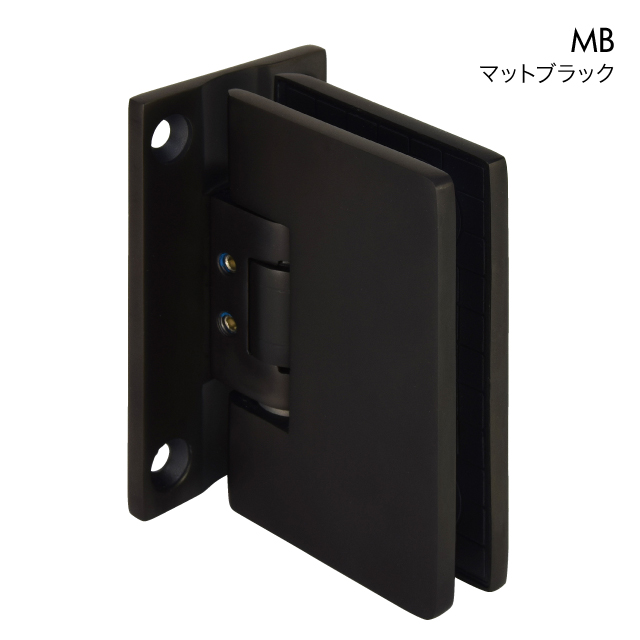

Mat Black(MB)
Copper(CP)
Gold(GL)
Attention ・For a glass door opening at 90°.
・Installation position and closing position of door may have difference, because of the pressure of air condition.
Explanation ・Attached parts : Packing/t=1mm (2pcs.), Packing/t=2mm (2pcs.), Packing for side use (1pc.), Hexagon wrench (1pc.), M5 flathead screws (4pcs.)
・In case of glass thickness 12mm, please use with packing (t=1mm).
Features
    ・Glass door hinges. Door angle can be adjusted with the door installed.
    ・Corrosion-resistant.
    ・Center position can be adjusted by 5°to each side.
    ・Door close automatically at an angle of 35°.
    ・Up to 800mm. (It varies depending on the use conditions)
