OT-B494-SUS

STAINLESS HINGE FOR GLASS(Frame installation type)

Product Code Note
OT-B494-SUS-MST STAINLESS HINGE FOR GLASS(Frame installation type) Glass thickness:8〜10mm Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges)
OT-B494-SUS-HLST STAINLESS HINGE FOR GLASS(Frame installation type) Glass thickness:8〜10mm Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges)
OT-B494-SUS-MB STAINLESS HINGE FOR GLAS(Frame installation type) Glass thickness:8〜10mm Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges)
OT-B494-SUS-CP STAINLESS HINGE FOR GLAS(Frame installation type) Glass thickness:8〜10mm Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges) ※Make-to-oder.
OT-B494-SUS-GL STAINLESS HINGE FOR GLAS(Frame installation type) Glass thickness:8〜10mm Glass thickness : 8〜12mm Allowable load : 40kg (Using two hinges) ※Make-to-oder.
Materials Stainless Steel(SUS-304)

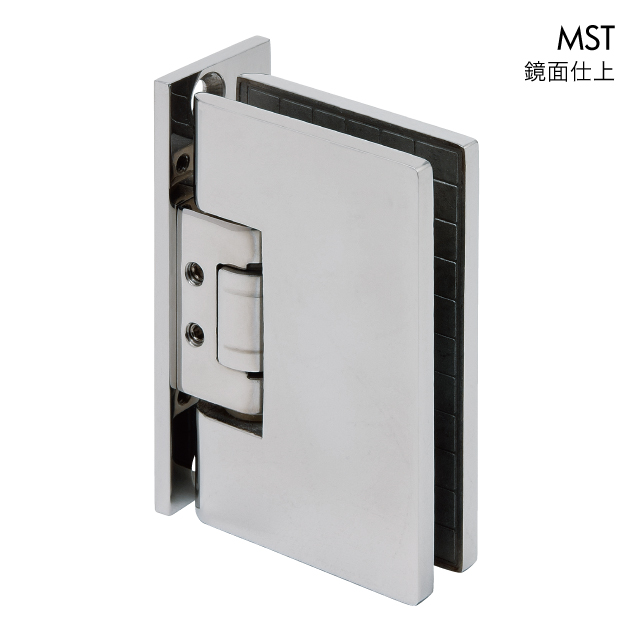

Finish Mirror Polishing(MST)
Hairline Stainless Steel(HLST)
Mat Black(MB)
Copper(CP)
Gold(GL)
Attention ・For a glass door opening at 90°.
・Please apply a door stopper in order to avoid the door from opening over 90°
Explanation ・Attached parts:Packing/t=1mm (2pcs.), Packing/t=2mm (2pcs.), Hexagon wrench (1pc.), M5 flathead screws (3pcs.)
・As for installation, please refer to the attached instuction manual.
Features
    ・Glass door hinges. Door angle can be adjusted with the door installed.
    ・Heat/corrosion-resistant.
    ・Center position can be adjusted by 5°to each side.
    ・Door close automatically at an angle of 35°.
    ・Up to 800mm. (It varies depending on the use conditions)
