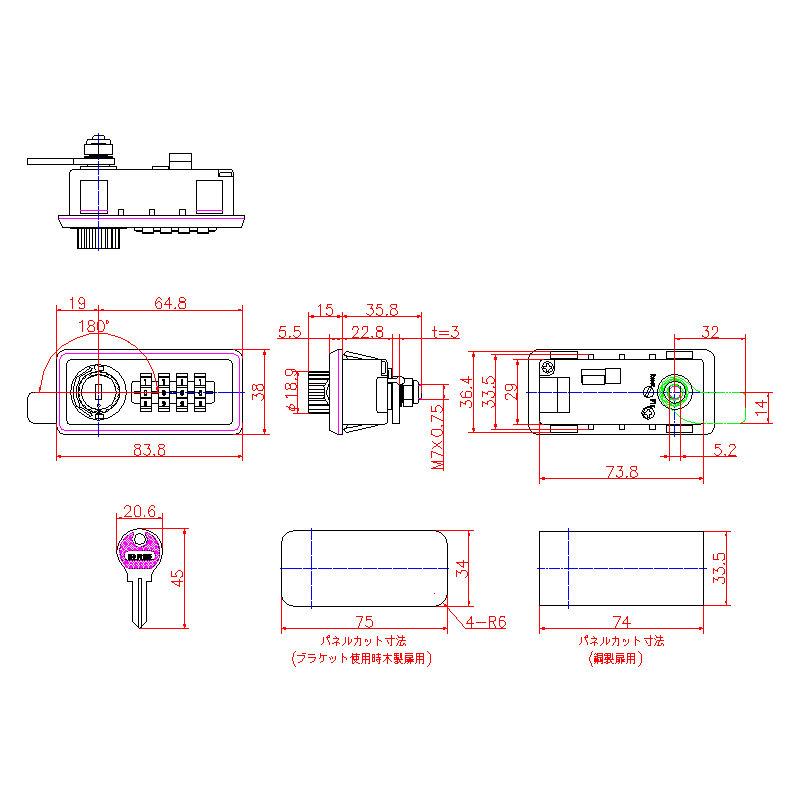

L-330HA/L-330VA

4-DIAL COMBINATION LOCKS

Product Code Note
L-330HA-R-KA 4-DIAL COMBINATION LOCKS (horizontal mode) Door thickness :0.8~1.0mm
L-330HA-L-KA 4-DIAL COMBINATION LOCKS (horizontal mode) Door thickness :0.8~1.0mm
L-330HAW-KA 4-DIAL COMBINATION LOCKS (horizontal mode for Wooden door) Door thickness : ~20mm
L-330VA-KA 4-DIAL COMBINATION LOCKS （vertical mold） Door thickness : 0.8~1.0mm
L-330VAW-KA 4-DIAL COMBINATION LOCKS (vertical mold for Wooden door) Door thickness :~20mm
L-330HA-R-KD 4-DIAL COMBINATION LOCKS (horizontal mode) Door thickness :0.8~1.0mm
L-330HA-L-KD 4-DIAL COMBINATION LOCKS (horizontal mode) Door thickness :0.8~1.0mm
L-330HAW-KD 4-DIAL COMBINATION LOCKS (horizontal mode for Wooden door) Door thickness : ~20mm
L-330VA-KD 4-DIAL COMBINATION LOCKS （vertical mold） Door thickness :0.8~1.0mm
L-330VAW-KD 4-DIAL COMBINATION LOCKS (vertical mold for Wooden door) Door thickness : ~20mm
【Selling separately】 L-330_L-336BP For wooden door
Change tool key and Cylinder for change
Materials ABS Resin(ABS)
Finish Light Gray
Usage examples Mailboxes, Locker, Medical equipment
Operating instructions Just fit it into cutout for installation.
Attention ◇Please specify K/A, K/D when ordering.
◇Please do not use it for a safe or a valuables box.
◇Change tool key and Cylinder for change is not attached.
Key No. Preset code is 0000.
2 keys are attached.
【K/A】 No.S1000.
【K/D】 10,000 different reversible keys available.（100 different keys in stock.）
Explanation Exclusive stopper plate is attached.
・Gray and Black color is also available as a OEM (500PCS～）. Please contact us separately.
Features
    ・Changeable key code.
    ・With indicator. (Red/Green)
    ・Permanent use/Temporary use
    ・You can unlock with the emergency key when you forget your key code.
    ・Please have a key code search on the back side of body after it is unlocked with the emergency key.
    ・With dust shutter.
    ・Changeable cylinder.
    ・Can be mounted on wooden doors (bracket sold separately required)
